This CAD block collection includes;

​

• 107 separate .dwg files, setup as blocks

• 4 separate ZIP files

• Complete crane with all booms and jibs, all set up as AutoCAD blocks

• All standard main booms (T) 14.9m to 70m

• All guyed booms (TY) 30.1m to 69.1m

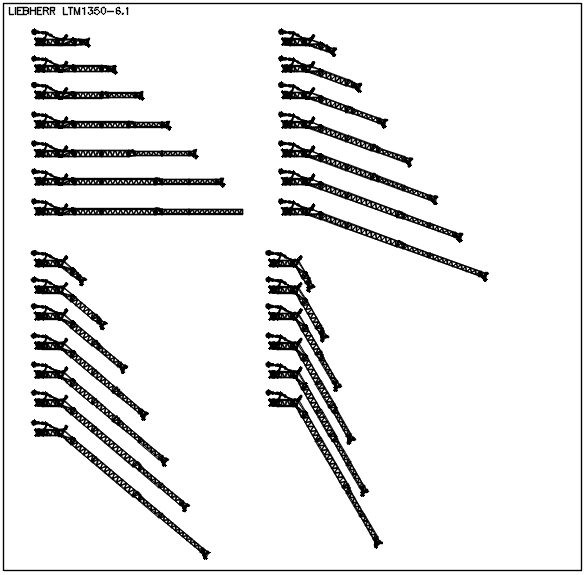

• All fixed jibs (F) from 6m to 42m, at 0, 20, 40 & 60 degree offsets

• All fixed jibs (VEF) from 6m to 42m, at 0, 20, 40 & 60 degree offsets

• All luffing jibs 12m to 78m

• Elevation and plan views of the crane carrier

• Plan view of the upper deck

• All hooks 12.2t to 213t
