This CAD block collection includes;

​

• 190 separate .dwg files, setup as blocks

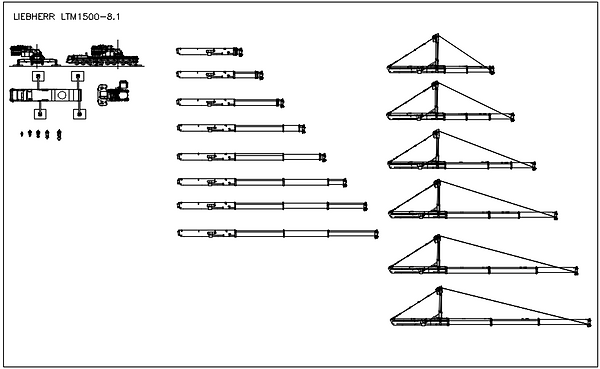

• Complete crane with all standard and guyed booms, all luffing main booms & luffing jibs

• Elevation and plan views of the crane carrier

• Elevation views of the crane carrier with luffing main booms attached

• Plan view of the upper deck

• All hooks

• Main boom lengths from 16.1m to 50m

• Luffing jibs from 21m to 91m

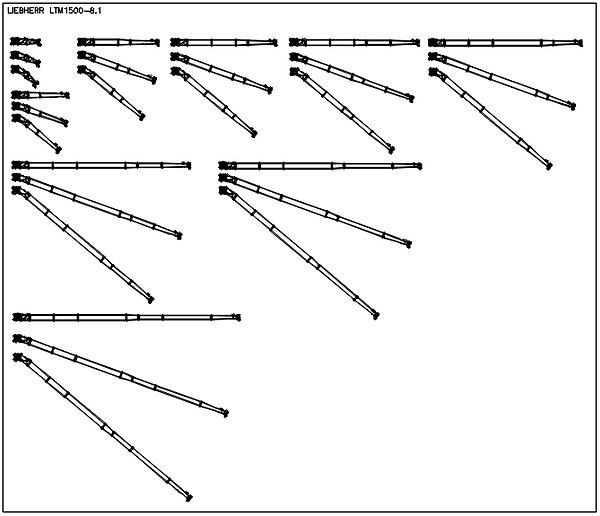

• TNZF jibs from 6m to 63m, at 0, 20 & 40 degree offsets

• TVNZF jibs from 6m to 49m, at 0, 20 & 40 degree offsets
